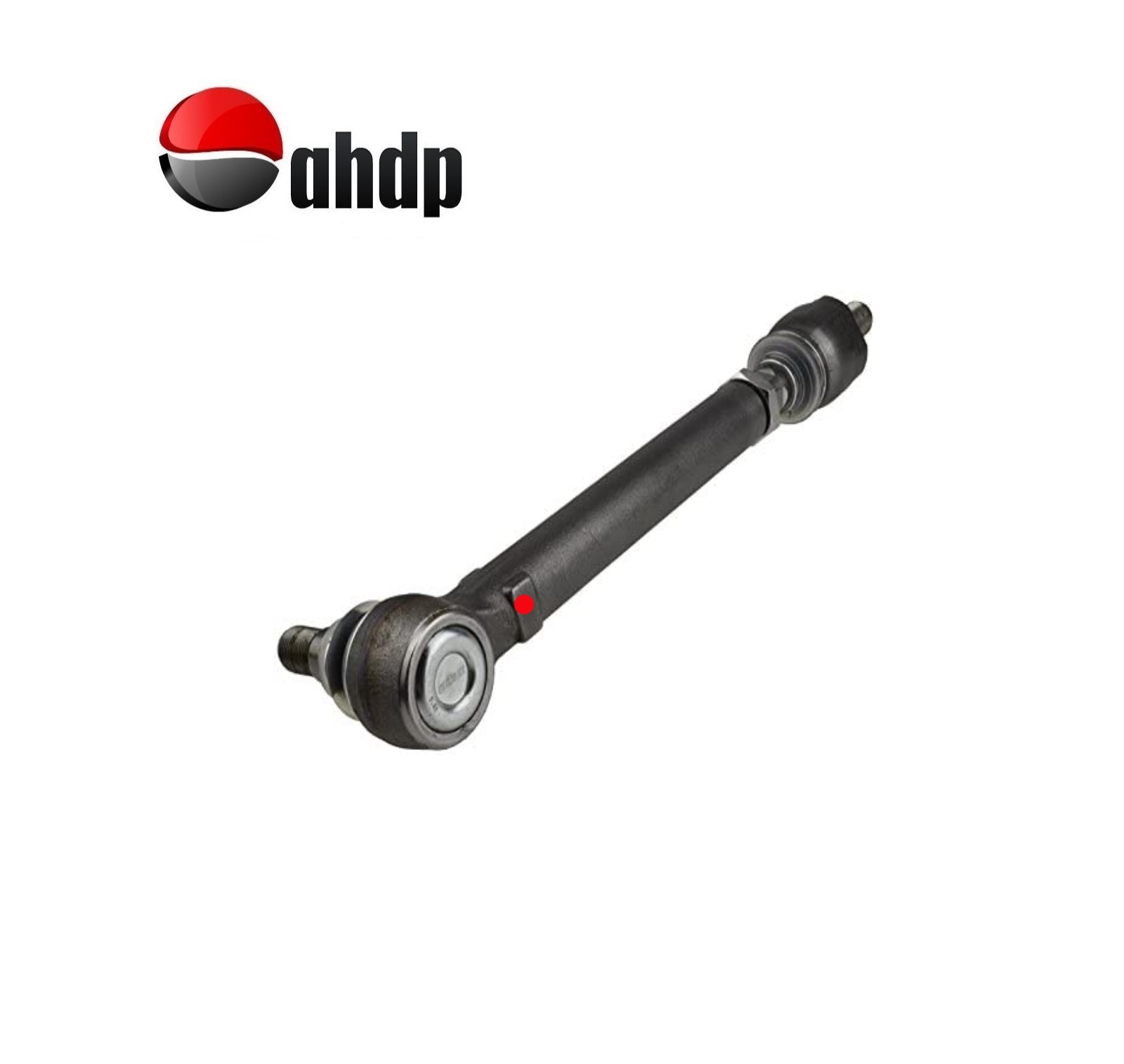

TIE ROD FEMALE THREAD W/AXIAL JOINT LH CARRARO
CARRARO - STEERING
CARRARO 123154
BOBCAT 71055.8, M71055.8
BOBCAT - SAMBRON M71055.8
CASE D142916
CNH D 142916, D 142917 ROD, D142917
DOOSAN 71055.8
INGERSOLL RAND 71055.8
MANITOU 477307
TIE ROD SIZES M/M:
A) THREAD M24 x 1.5
B) LENGHT 260
C) TAPER CONE Ø d1 23.5 & d2 26.4 – 1:10
AXIAL JOINT SIZES M/M:
D) THREAD JOINT M22 x 1,5
E) THREAD PIN M24 x 1.5
F) LENGTH JOINT 32
G) LENGTH PIN 140
EQUIPMENT
CARRARO AXLES
Reference: CO05123154
Cross Reference: 123154
